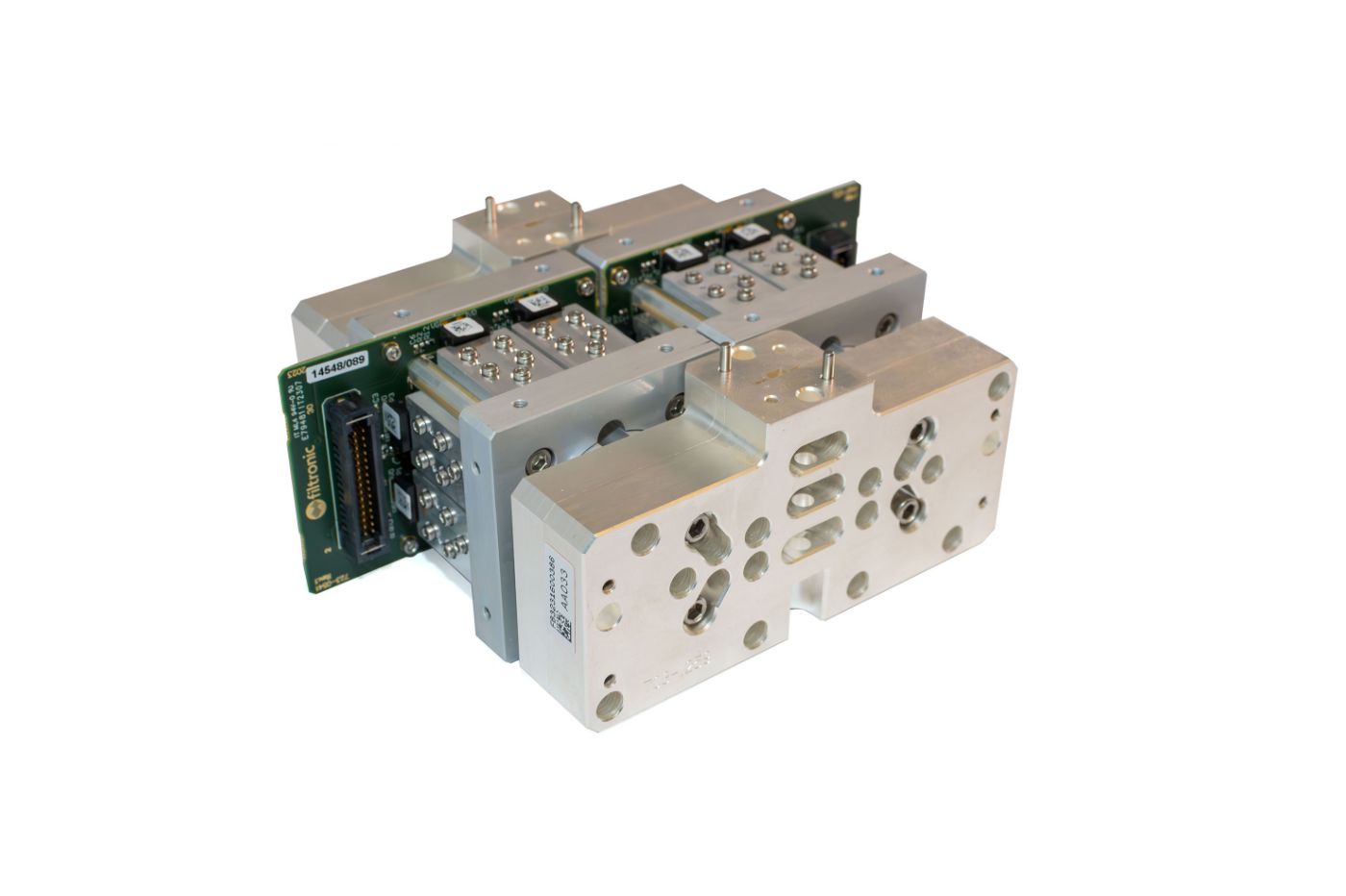

Taurus
81-86GHz
81-86GHz high power amplifier with saturated powers up to >+39dBm
In terms of performance, our high power amplifier redefines E-band power for commercial and military applications.
E band represents the frequency range from 60 GHz to 90 GHz. The Taurus power amplifier efficiently combines the power of two Cerus amplifiers, almost doubling the available output power.
Taurus key facts
- 81-86GHz High Power Amplifier
- High linearity supports 256QAM modulation
- Full 5GHz bandwidth
- Saturated powers up to >+39dBm
- >20dB gain
- Suitable for commercial or military applications
Get a quotation or ask a question
Get in touch and a member of our technical sales team will be able to give you a personalised quotation
Taurus features
- s81-86GHz High Power Amplifier
- High linearity supports 256QAM modulation
- Full 5GHz bandwidth
- Saturated powers up to >+39dBm
- >20dB gain
- Suitable for commercial or military applications
Product description
Filtronic’s range of Cerus & Taurus amplifiers provide market leading linear mmW power. Available in single to N-way configurations, the Taurus power amplifiers deliver unparalleled performance for long range E-Band communications.

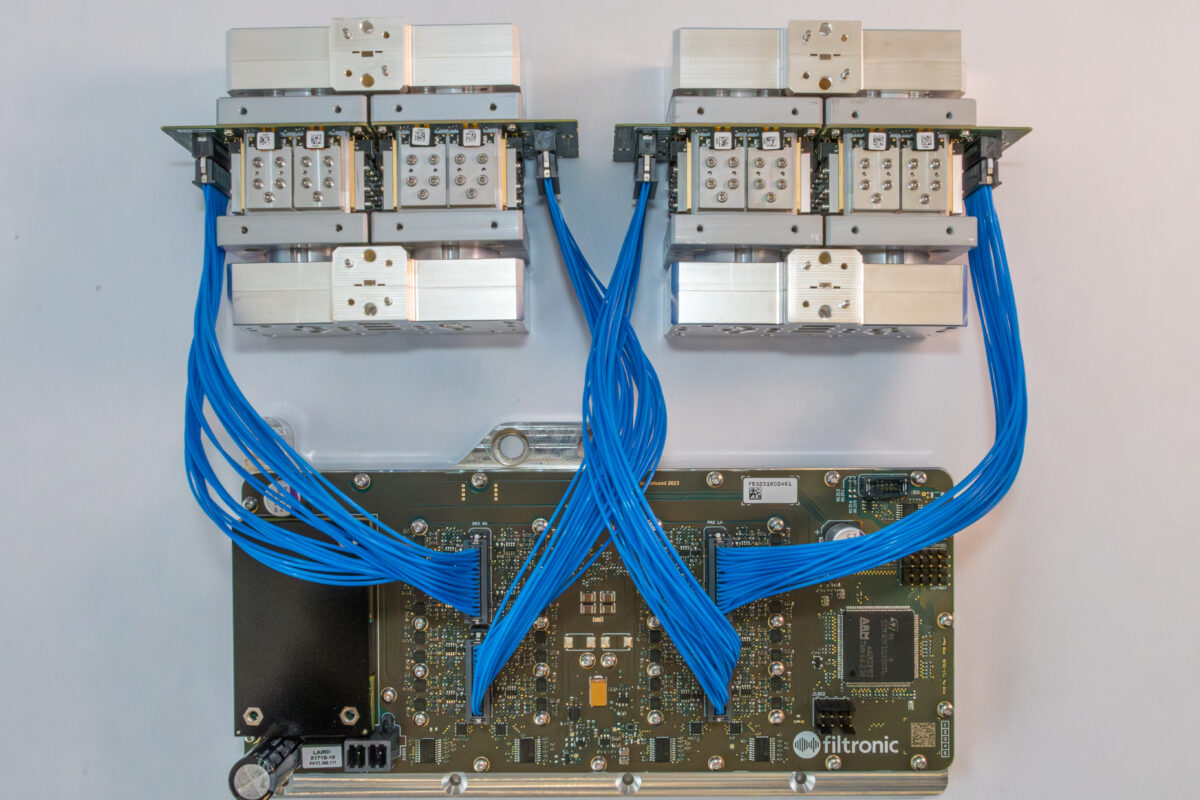

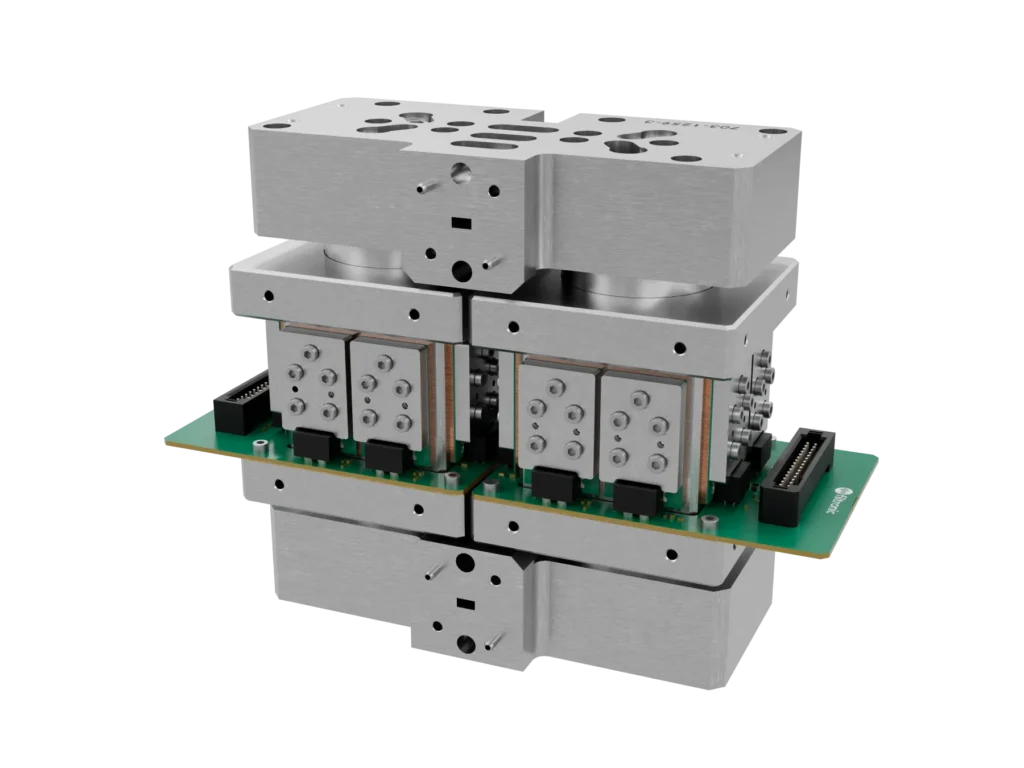

Taurus amplifiers efficiently combine the power of two Cerus amplifiers, almost doubling the available output power. Each Taurus module contains two Cerus 8 E-Band amplifier modules which each contain 8x Filtronic GaAs pHEMT PA MMICs performance matched and power combined in waveguide to deliver maximum power. An integrated temperature sensor provides users with accurate amplifier temperature data, and optional control circuitry facilitates functions including mute control and alarms.
Suitable for commercial or military applications, Taurus can be applied for terrestrial and non-terrestrial communications.
