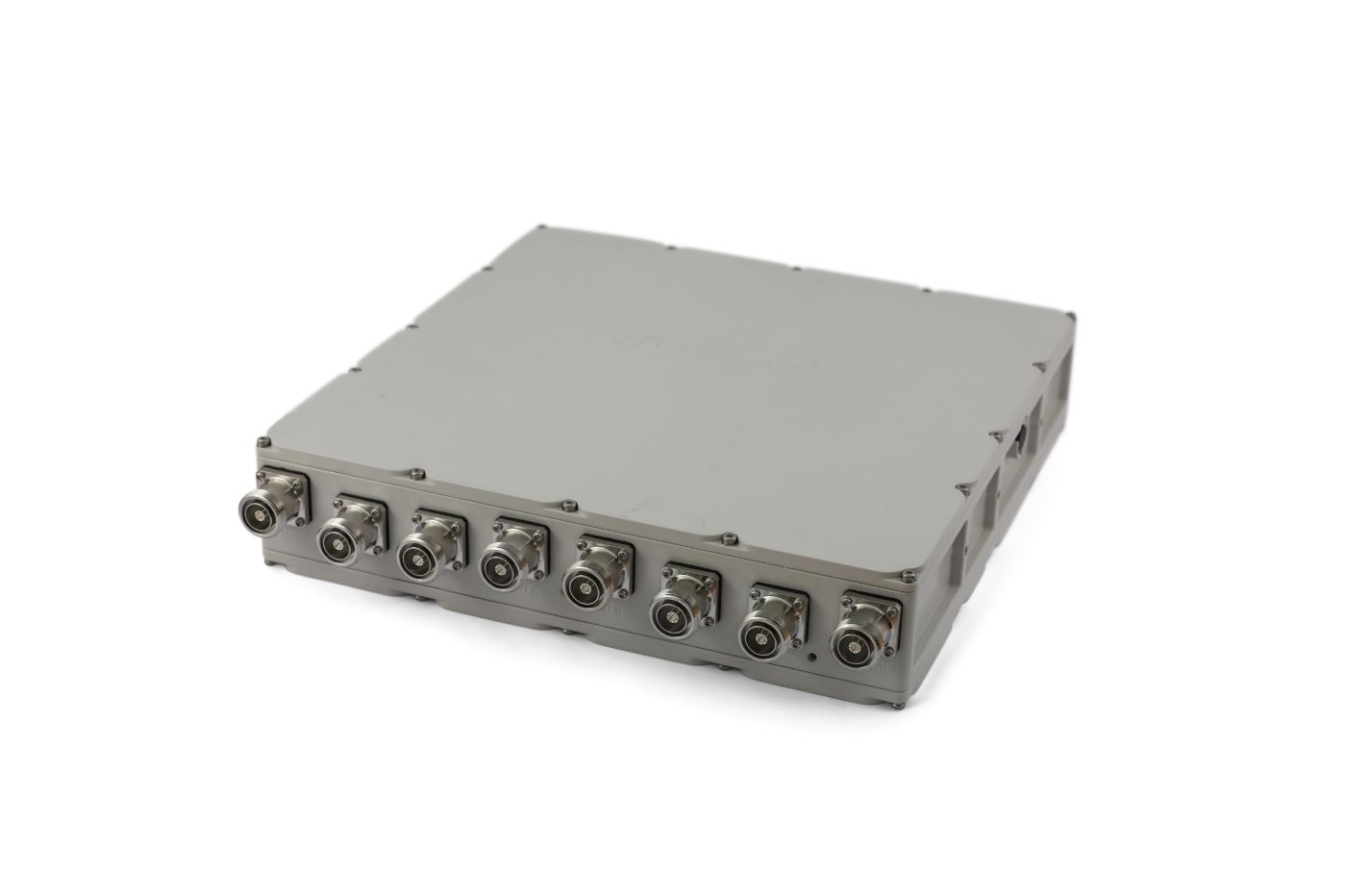

Metal cavity filters
0-110GHz
Low loss filter, ideal for high power
Filtronic has extensive expertise of machined and cast metal cavity filters.
Cavity Filters between the antenna and radio to reduce the effects of other wireless systems on its receiver and to obtain best receiver performance in a real RF environment. Cavity filters offer the user very low insertion loss, steep skirt selectivity, and narrower bandwidths than discrete component filters.
Metal cavity filters key facts
- Optimised rejection
- Excellent for quick turnaround
- Simplified design
Metal cavity filters features
- Low insertion loss
- Tight rejection specifications
- High power
- Low passive intermodulation
Get a quotation or ask a question
Get in touch and a member of our technical sales team will be able to give you a personalised quotation
Product description
Filtronic has extensive expertise of machined and cast metal cavity filters. Traditionally supporting the wireless infrastructure business, where typical demands include low loss, tight rejection specifications, high power, and low passive interm. Cavity filters offer the user very low insertion loss, steep skirt selectivity, and narrower bandwidths than discrete component filters.
Typical products include, band pass and band stop filters, cross-band and in-band combiners for antenna sharing, multiplexers and tunable filters, either factory tuned or field reconfigurable. All designs are fully modelled prior to release using the latest electrical, mechanical, and thermal modelling tools ensuring designs remain compliant over severe temperature ranges.
All filters are 100% tested using Filtronic’s in-house fully automated test suite; recording all RF parameters.
Filtronic’s filter experts improve filter performance through our understanding on parts selection and physical layout, coupled with extensive experience of designing coils, resonators, as well as the shape and size of the cavity housing.
Each filter is bespoke to our client’s requirements so that they get the optimum performance at the lowest cost.
